2 Person Cubicle with Power

2 Person Cubicle with Power

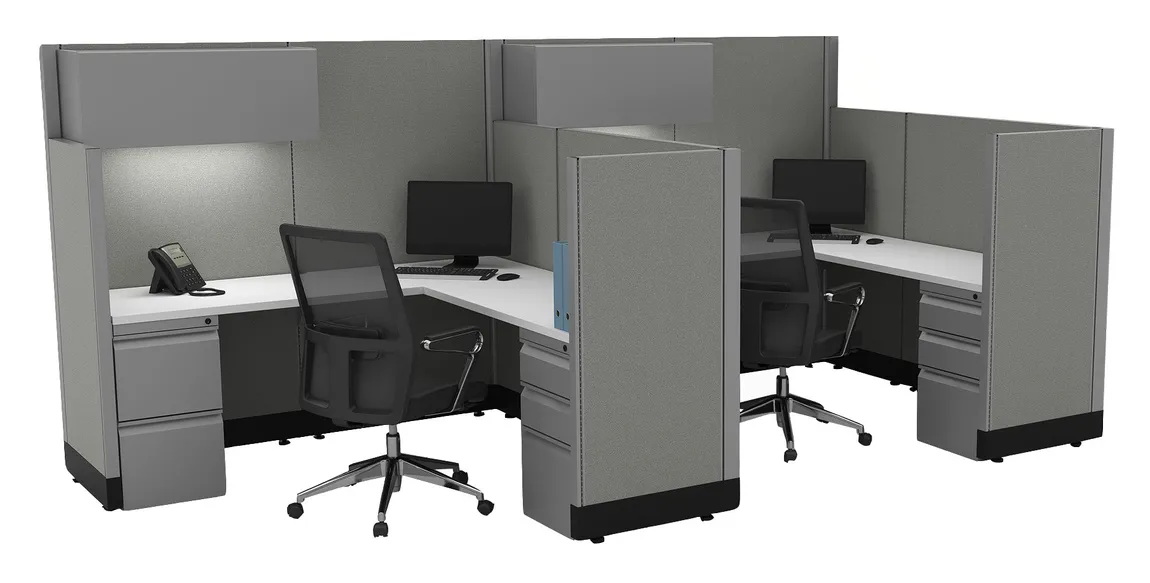

The workspace cubicles feature steel and extruded aluminum components with 53" and 67" tall panels that help to reduce unwanted noise. Each station has two sets of drawers and an overhead storage unit with a flip-up door. It's available in different sizes with your choice of finish, White shown. You need to select a base feed or ceiling feed to power this set-up.


Details

  • Available in different sizes
  • Available in different finishes
  • Drift fabric upholstery comes standard
    • 100% polyester: UL-Recognized
  • Exceeds ANSI/BIFMA quality standards
  • 2" thick panels for privacy and sound absorption
    • Panels measure 53" and 67" tall
  • Components are constructed from steel and extruded aluminum
  • Panels feature stress-skin core construction for lightweight durability
  • Built to standards familiar to professional installers for quick installation
    • Installer friendly rod-and-block assembly
  • You will need to select a base feed or a ceiling feed in order to power your cubicles
    • All electrical will require a professional electrician for installation
    • Data does not run through the stations
  • If you require a power feed from the bottom: You can choose a base feed
  • If you require a power feed from the ceiling: You can choose a ceiling feed
    • Includes 12 FT power pole, ceiling feed, top and bottom bezel (Comes standard in White)
    • The pole for the top feed is 12 ft and will require modification, professional installer recommended
    • A custom solution will be required if your ceiling is taller than 12 FT.
  • Accessories include office chairs, power modules, task lights and more
  • It comes standard with Black raceway covers and Silver connector beams
  • Worksurfaces are made from a high quality laminate that is scratch resistant and easy to clean
  • Each workstation includes: one 2-drawer metal pedestal, one 3-drawer metal pedestal and an overhead storage unit with a flip-up door
  • Warranty:
    • Lifetime on metal, plastic and wood component parts
    • 5-years on electrical, laminate worksurfaces, lighting and moving parts
    • 3-years on the fabric

    Contact our sales team at (888) 831-1012  for a free floor plan with renderings of what your work space will look like along with a detailed estimate. They can also provide you with a free floor plan, renderings and an estimate if you are interested in this set-up but would like a larger or smaller configuration for cubicle pods or rows.

Product Specs


Model

ConditionNew
Brand
Series
Parts List(2) PWS6024___, (5) PMF5324SV01, (5) PRC-S24, (2) PSFD-30SV, (2) PH-SA24, (2) PWS3624___, (2) PMF5336SV01, (2) PRC-S36, (2) PTO22BBF-SV, (2) PH-SS24, (2) PWJU-PTP, (4) PMF6730SV01E, (4) PRC-C30, (2) PTO22FF-SV, (2) PH-CB, PWJU-PTC, (2) PCO67-2WSV, (2) PH-FP35, (4) PWRE-A, (1) PCO67-3WSV, (12) PW-OC, (2) PCO53-2WSV, (3) PTCO14SV, (2) PDR67, (2) PDR53, (3) PEC53SV, (2) PTLLED-POW, (2) PTLLED-24, (2) PTL-CM, PWBF-R

Options

Available FinishesEspresso, Slate Gray, Urban Walnut, White

Specifics

FinishWhite
Dimensions126" x 64" x 53/67"
MaterialAluminum, Fabric, Laminate, Metal, Polyester, Steel
ShapeL Shaped
FeaturesCollaborative, Drawers, Locking, Overhead Storage, Power, Storage, Task Light
Capacity2 Person

Parts List

Please note that for items with multiple size options, the parts list may be slightly modified to meet the dimensions requested.

QTYPart #DescriptionList PriceOur PriceLine Total
2PWS6024___Worksurface 60"x24" (specify color)$425.00$215.00$430.00
5PMF5324SV01Panel, 53H x 24W, Silver Finish/Drift Fabric, Non Power$440.00$225.00$1,125.00
5PRC-S24Raceway Cover, Smooth, 24W, Black (Set of 2)$30.00$20.00$100.00
2PSFD-30SVFlipper Door Set, 30"W, Silver$550.00$280.00$560.00
2PH-SA24Support Arm, 24"D surfaces, Pins/Buttons, Black (Set of 2)$60.00$35.00$70.00
2PWS3624___Worksurface 36"x24" (specify color)$280.00$145.00$290.00
2PMF5336SV01Panel, 53H x 36W, Silver Finish/Drift Fabric, Non Power$620.00$315.00$630.00
2PRC-S36Raceway Cover, Smooth, 36W, Black (Set of 2)$45.00$25.00$50.00
2PTO22BBF-SV22" Open Top Pedestal With Adjustable Glides - File/File (Silver)$480.00$295.00$590.00
2PH-SS24Shared Support Arm 24"D Surfaces Black $105.00$55.00$110.00
2PWJU-PTPJumper panel to panel (19.42")$85.00$45.00$90.00
4PMF6730SV01EPowered Panel, 67H x 30W, Silver Finish/Drift Fabric$835.00$420.00$1,680.00
4PRC-C30Raceway Cover w/Power Access, 30W, Black (Set of 2)$35.00$20.00$80.00
2PTO22FF-SV22" Open Top Pedestal With Adjustable Glides - File/File (Silver)$480.00$295.00$590.00
2PH-CBSupport, Corner Bracket, Black (Set of 2)$12.00$10.00$20.00
1PWJU-PTCJumper panel connector panel (23.12")$110.00$60.00$60.00
2PCO67-2WSVConnector 2-Way 90, 67H, Silver$310.00$160.00$320.00
2PH-FP35Flat Plate 3"x5", Black$10.00$10.00$20.00
4PWRE-AReceptacle A, Black$36.00$20.00$80.00
1PCO67-3WSVConnector 3-Way 90, 67H, Silver$365.00$185.00$185.00
12PW-OCOutlet Cover, Black$3.00$5.00$60.00
2PCO53-2WSVConnector 2-Way 90, 53H, Silver$260.00$135.00$270.00
3PTCO14SVConnector Finished End Trim 14", Silver$12.00$10.00$30.00
2PDR67Draw Rod, 67H, Black$49.00$25.00$50.00
2PDR53Draw Rod, 53H, Black$40.00$25.00$50.00
3PEC53SVEnd Cap, 53", Silver$111.00$60.00$180.00
2PTLLED-POWPower Cord for LED Task Light (3m long)$125.00$65.00$130.00
2PTLLED-2424" LED Task Light$250.00$130.00$260.00
2PTL-CMCord Manger 48", Black$20.00$15.00$30.00
1PWBF-RBase Feed Right Hand, Black$400.00$205.00$205.00

Available Finishes

Espresso
Espresso
Slate Gray
Slate Gray
Urban Walnut
Urban Walnut
White
White
